【備忘録】BluetoothでAndroidからLinuxにメッセージを送る


まず基本処理。検索して〜みたいな部分は前の説明に載ってるので省略。ManifestもLayoutも変えてないので省略。前のに載ってる。
具体的にはIntent移行処理部分が増えました。
ListViewのアイテムがクリックされたら次に飛ぶ。その時にクリックされたBluetoothのデバイスに関する情報を次のIntentに持って行かせる。
putExtra()は超便利

MainActivity.java
package com.example.azuki.myapplication;

import android.app.Activity;
import android.bluetooth.BluetoothAdapter;
import android.bluetooth.BluetoothDevice;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.os.Bundle;
import android.util.Log;
import android.content.IntentFilter;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.Toast;
import java.util.ArrayList;

import static android.bluetooth.BluetoothAdapter.ACTION_DISCOVERY_FINISHED;
import static android.bluetooth.BluetoothAdapter.ACTION_DISCOVERY_STARTED;
import static android.bluetooth.BluetoothDevice.ACTION_FOUND;
import static android.bluetooth.BluetoothDevice.ACTION_NAME_CHANGED;
import static android.bluetooth.BluetoothDevice.EXTRA_DEVICE;

public class MainActivity extends Activity {
  public static final String app = "Bluetooth Sample";
  public static final int ACTION_REQUEST_ENABLE_BLUETOOTH = 10;
  public ListView listView;
  public ArrayAdapter<string> adapter = null;
  public BluetoothAdapter bt;
  public ArrayList<bluetoothdevice> foundDevices = new ArrayList<bluetoothdevice>();
  public boolean btFound = false;


  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_main);
    listView = (ListView) findViewById(R.id.listView);
    adapter = new ArrayAdapter<string>(getApplicationContext(), R.layout.activity_main_text_listview);

    bt = BluetoothAdapter.getDefaultAdapter();

    if (!bt.isEnabled()) {
      // もしもBluetoothがオフになっていたら、オンにするように促すダイアログを表示
      // ユーザの操作後onActivityResult()が呼ばれる
      startActivityForResult(new Intent(BluetoothAdapter.ACTION_REQUEST_ENABLE), ACTION_REQUEST_ENABLE_BLUETOOTH);
    } else
      searchDevice();
  }

  private void searchDevice() {
    // ブロードキャストを受信するにあたって、どんなものが受信したいか決めておく
    IntentFilter filter = new IntentFilter();
    filter.addAction(ACTION_DISCOVERY_STARTED);   // 検索開始
    filter.addAction(ACTION_FOUND);               // 何か見つかった
    filter.addAction(ACTION_NAME_CHANGED);        // デバイス名が変わった
    filter.addAction(ACTION_DISCOVERY_FINISHED);  // 検索が終わった
    registerReceiver(DeviceFoundReceiver, filter);
    bt.startDiscovery();
  }

  private BroadcastReceiver DeviceFoundReceiver = new BroadcastReceiver() {
    @Override
    public void onReceive(Context context, Intent intent) {
      String action = intent.getAction();
      final BluetoothDevice foundDevice;
      if (action.equals(null)) {  // ぬるぽ対策
        return;
      } else {
        switch (action) {
          // 検索開始時に行うこと(初期化)
          case ACTION_DISCOVERY_STARTED:
            Log.d(app, "start");
            if (foundDevices!=null && !foundDevices.isEmpty())
              foundDevices.clear();
            break;
          // デバイスが見つかったら配列に追加
          case ACTION_FOUND:
            foundDevice = intent.getParcelableExtra(EXTRA_DEVICE);
            foundDevices.add(foundDevice);
            Log.d(app, foundDevice.getName() + " " + foundDevice.getAddress());
            adapter.add(foundDevice.getName());
            btFound = true;
            break;
          // 検索終了して、デバイスが一つでも見つかっていればそれらをListViewに並べて表示
          case ACTION_DISCOVERY_FINISHED:
            Log.d(app,"finished");
            if (btFound) {
              listView.setAdapter(adapter);

              //---------
              // 具体的に増えたところ
              //---------
              // ListViewがクリックされたらSendMessageに飛ぶ
              listView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
                @Override
                public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
                  Toast.makeText(getApplicationContext(), String.valueOf(position), Toast.LENGTH_SHORT).show();
                  Intent sendMessageIntent = new Intent(getApplicationContext(), SendMessage.class);
                  sendMessageIntent.putExtra("device", foundDevices.get(position));
                  startActivity(sendMessageIntent);
                }
              });
              //---------
              // 具体的に増えたところここまで
              //---------

            }
          default:
            break;
        }
      }
    }
  };

  @Override
  protected void onActivityResult(int requestCode, int resultCode, Intent intent) {
    // Bluetoothをオンにするように促すダイアログ
    if (requestCode == ACTION_REQUEST_ENABLE_BLUETOOTH) {
      if (resultCode == Activity.RESULT_OK) {
        Log.d(app, "Bluetooth on");
        searchDevice();
      } else {
        // オンにしてもらえなかったら死ぬ
        Log.d(app, "Bluetooth cannot be on. Abort.");
        finish();
      }
    }
  }
}




ここからが本格的に増やした部分。
まず、Layout。
EditTextとButtonだけですっげシンプル。

activity_send_message.xml
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/activity_send_message"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="com.example.azuki.myapplication.SendMessage">

    <EditText
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:inputType="textPersonName"
        android:text="text"
        android:ems="10"
        android:layout_alignParentTop="true"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="30dp"
        android:id="@+id/editText"/>

    <Button
        android:text="Send"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@+id/editText"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="30dp"
        android:id="@+id/button_send"/>
</RelativeLayout>



で、処理部分。 おおよそコメントに書いてあるから特筆するようなものもない・・・。
前のIntentのputExtraで投げたやつを受け取って
それを使ってソケットを作って
作ったソケットを開いて
文字列を用意して
送って
ソケットを閉じて終了。
Keep It Simple and Shortを体現したようなコード(ただし最適化なんてしてない)

ソケットのwriteやreadには専用のスレッドを作ったほうがいい(Bluetooth を使うの「接続の管理」参照)みたいだけど、練習用だし、これから先に何か処理をつなげて書くわけでもないので、他の処理はブロックさせとく。
Serial Port Profile (SPP)を使うのでUUIDは"00001101-0000-1000-8000-00805F9B34FB"にしておかないといけないっぽい(2011-10-25 - ここのことはなかったことにするかも [Android] Bluetooth でパソコンと通信BluetoothChatでシリアル接続(SPP)を行う | dietposter's blog)。

SendMessage.java
package com.example.azuki.myapplication;

import android.bluetooth.BluetoothDevice;
import android.bluetooth.BluetoothSocket;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.util.Log;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.nio.charset.Charset;
import java.util.UUID;

public class SendMessage extends AppCompatActivity {
  public static final String app = "Bluetooth Sample";
  private final UUID uuid = UUID.fromString("00001101-0000-1000-8000-00805F9B34FB");  // UUIDは必ずコレ
  BluetoothSocket mmSocket;

  @Override
  protected void onCreate(Bundle savedInstanceState) {
    // 初期化プロセス
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_send_message);
    Button button = (Button)findViewById(R.id.button_send);
    final EditText editText = (EditText)findViewById(R.id.editText);

    // 前のIntentからの変数受け取り
    final BluetoothDevice bluetoothDevice = getIntent().getParcelableExtra("device");
    editText.setText(bluetoothDevice.getName()+"%sに送る文字を入力");

    // ボタンクリック時に以下を実行
    button.setOnClickListener(new View.OnClickListener() {
      @Override
      public void onClick(View v) {
        // ソケット作る
        BluetoothSocket tmpBTSocket = null;
        try {
          tmpBTSocket = bluetoothDevice.createRfcommSocketToServiceRecord(uuid);
        } catch (IOException e) {
          Log.e(app, "create() failed", e);
          return;
        }
        // ソケット開く
        mmSocket = tmpBTSocket;
        try {
          mmSocket.connect();
        } catch (IOException e) {
          try {
            Log.e(app, "cannot connect", e);
            mmSocket.close();
            return;
          } catch (IOException e2) {
            Log.e(app, "unable to close", e2);
            return;
          }
        }
        // 送るための文字列を用意する
        //InputStream inputStream = null; // ←文字列を受け取りたい場合は次を使う
        OutputStream outputStream = null;
        try {
          //inputStream = mmSocket.getInputStream(); // ←文字列を受け取りたい場合は(ry
          outputStream = mmSocket.getOutputStream();
        } catch (IOException e) {
          Log.e(app, "sockets not created", e);
          return;
        }
        // 文字列を送る
        try {
          outputStream.write(editText.getText().toString().getBytes(Charset.forName("UTF-8")));
        } catch (Exception e) {
          Log.e(app, "cannot be translated to UTF-8", e);
          return;
        }
        //ソケットを閉じて終了
        try {
          mmSocket.close();
        } catch (IOException e) {
          Log.e(app, "cannot be closed", e);
          return;
        }
        Log.d(app,"done!");
        return;
      }
    });
  }
}



次はLinux。BlueZとその周辺部が入ってることが前提。
C言語を使う。中身はおおよそRFCOMM socketsのrfcomm-server.cと同じ。
通信を受け付けて送信されたものを受信するだけ。

bluetooth.c
#include <stdio.h>
#include <unistd.h>
#include <sys/socket.h>
#include <bluetooth/bluetooth.h>
#include <bluetooth/rfcomm.h>

int main(int argc, char **argv)
{
    struct sockaddr_rc loc_addr = { 0 }, rem_addr = { 0 };
    char buf[1024] = { 0 };
    int s, client, bytes_read;
    socklen_t opt = sizeof(rem_addr);

    // allocate socket
    s = socket(AF_BLUETOOTH, SOCK_STREAM, BTPROTO_RFCOMM);

    // bind socket to port 1 of the first available
    // local bluetooth adapter
    loc_addr.rc_family = AF_BLUETOOTH;
    loc_addr.rc_bdaddr = *BDADDR_ANY;
    loc_addr.rc_channel = (uint8_t) 22;
    bind(s, (struct sockaddr *)&loc_addr, sizeof(loc_addr));

    // put socket into listening mode
    listen(s, 1);

    // accept one connection
    client = accept(s, (struct sockaddr *)&rem_addr, &opt);

    ba2str( &rem_addr.rc_bdaddr, buf );
    printf("accepted connection from %s\n", buf);
    memset(buf, 0, sizeof(buf));

    // read data from the client
    bytes_read = read(client, buf, sizeof(buf));
    if( bytes_read > 0 ) {
        printf("received [%s]\n", buf);
    }

    // close connection
    close(client);
    close(s);
    return 0;
}



で、Makefile
#include <stdio.h>
CC = g++
INCDIR = -I/usr/include/bluetooth
LIBS   = -lbluetooth

all: bluetooth

bluetooth: bluetooth.c
	$(CC) -o bluetooth bluetooth.c $(INCDIR) $(LIBS) -fpermissive

clean:
	rm bluetooth
あとはBluetoothの設定をして(Fedoraの場合は下のPSを参照)、そのフォルダに行ってmakeして実行すればおk。
# hciconfig hci0 piscan
# sdptool add --channel=22 SP
$ make
$ ./bluetooth

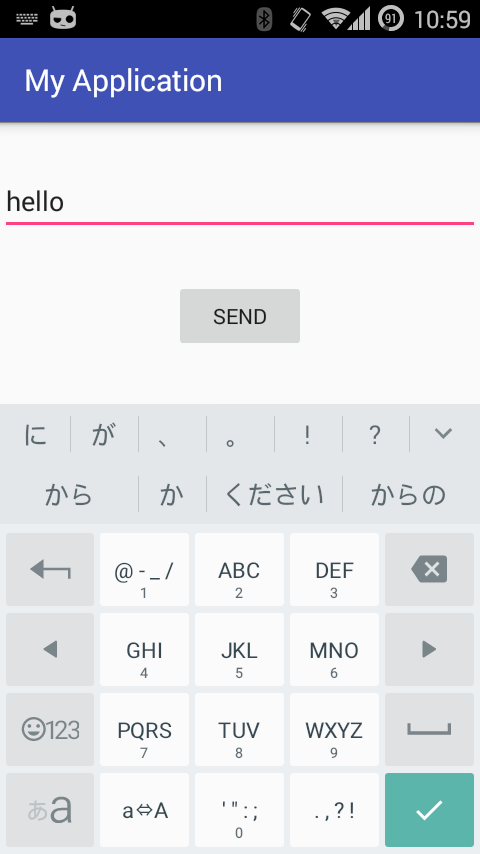

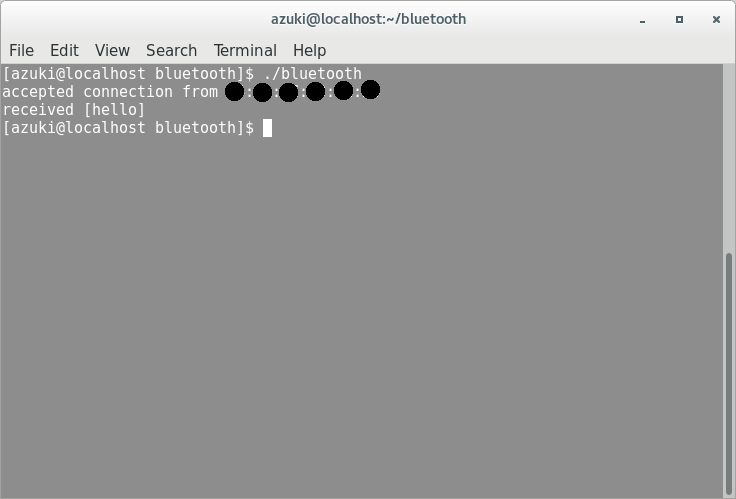

以下がAndroid側から"hello"と送った時の画像:
たぶんもうひと工夫しないと日本語は送れない・・・



PS:
Fedoraの場合は、そのままだとsdptoolに登録できないため、
"/etc/systemd/system/dbus-org.bluez.service"の"ExecStart"から始まる行の尻に"--compat"をつければいいらしい。
ExecStart=/usr/lib/bluetooth/bluetoothd --compat
↑こんな感じ
できたら
# systemctl daemon-reload
# systemctl restart bluetooth
# sudo chmod 777 /var/run/sdp
で、読み直して終わり。
参考:raspbian - Failed to connect to SDP server on FF:FF:FF:00:00:00: No such file or directory - Raspberry Pi Stack Exchange
